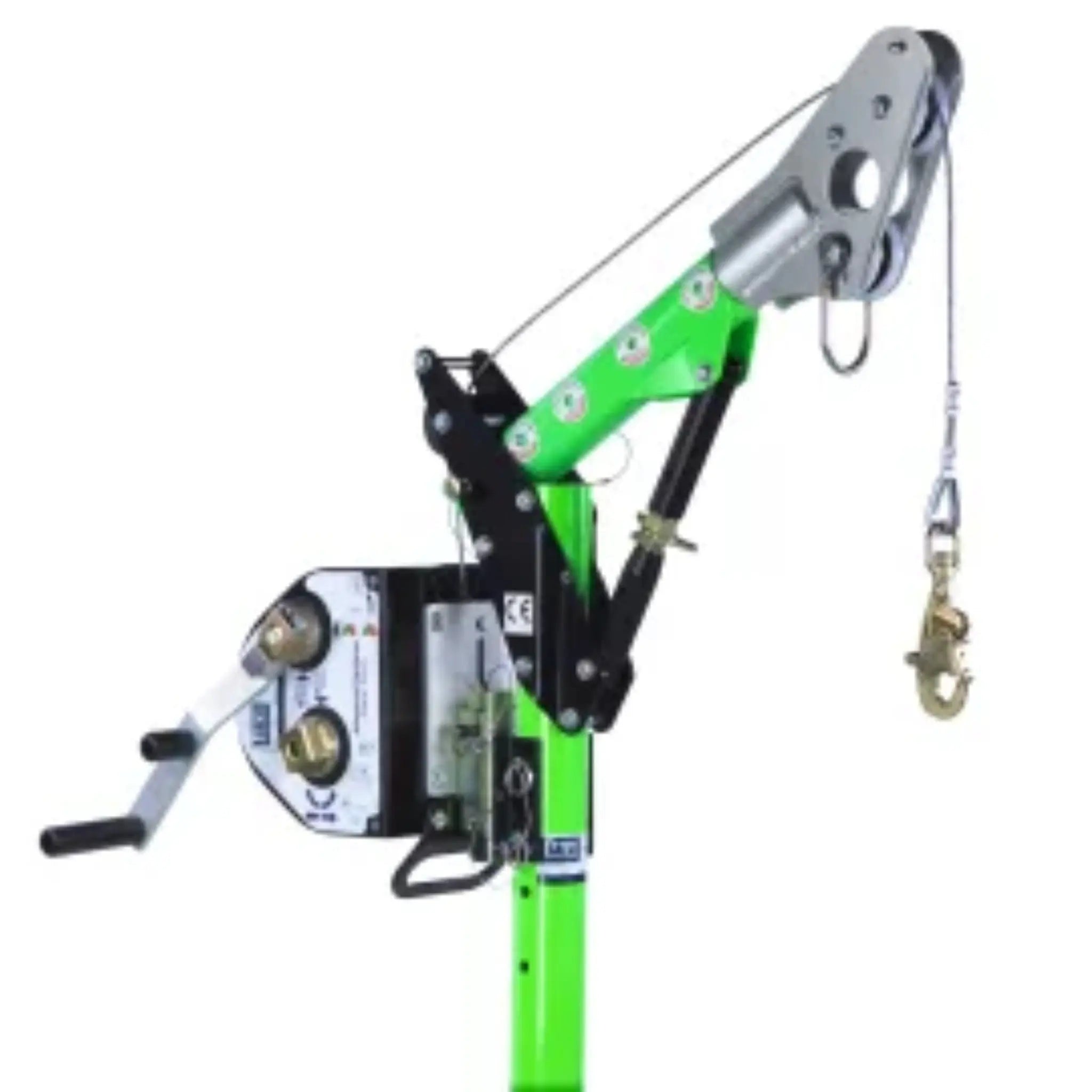

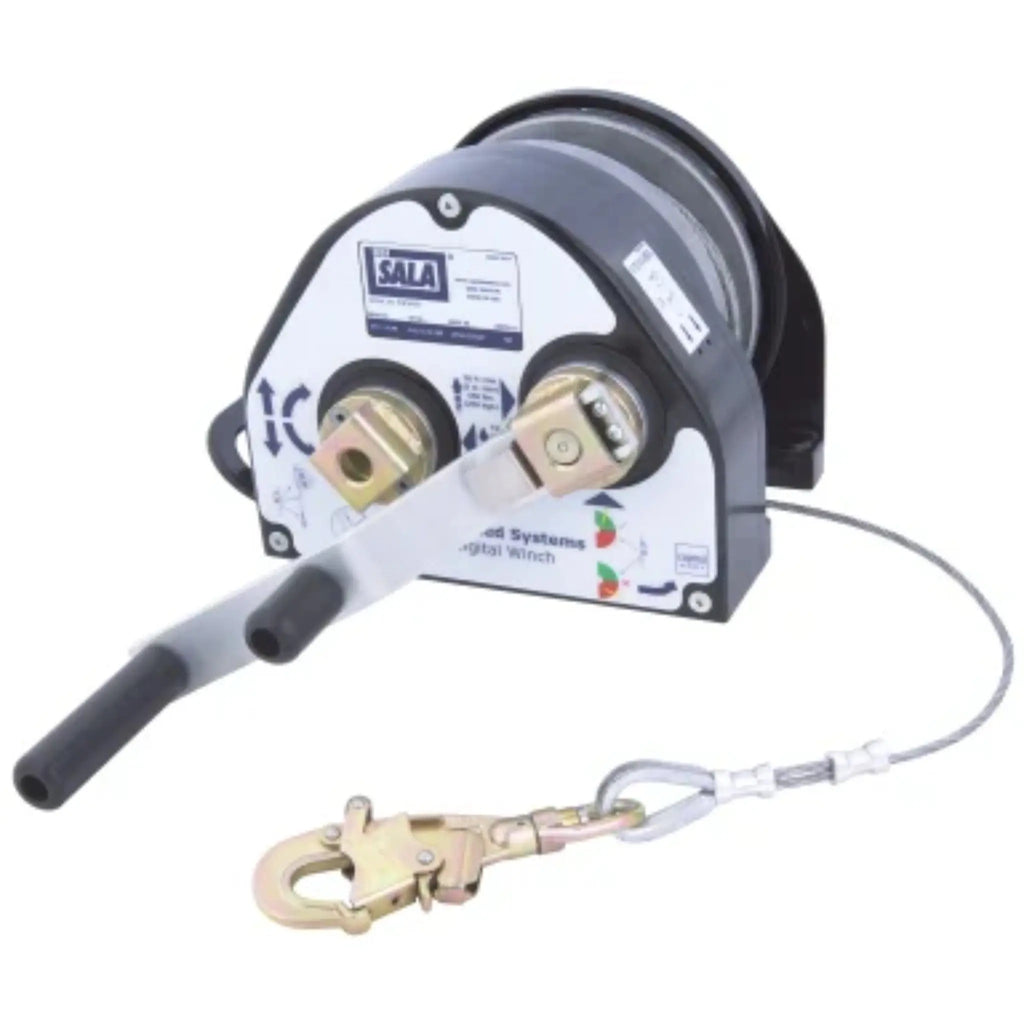

3M DBI-Sala 8518589 Advanced Winch Power Drive, 1 Each

Specifications:

• Brand: 3M DBI-SALA
• Product Name: Advanced Digital 200 Series Winch – Power Drive
• Manufacturer Part Number: 8518589
• 3M ID: 7100204347
• Product Type: Confined Space Winch
• Product Series: Advanced Digital 200 Series
• Drive Type: 9:1 Power Drive and 4:1 Manual Crank
• Lifeline Material: Galvanized Steel Wire Rope
• Lifeline Working Length: 190 ft. (58 m)
• Actual Cable Length: 200 ft. (61 m)
• Lifeline Diameter: 3/16 in. (5 mm)
• Lifeline Construction: 7x19 Galvanized Aircraft Wire Rope
• Weight: 48 lb. (21.8 kg)
• Maximum Working Load Capacity: 310 lb. (140 kg)
• Hook Material: Zinc-Plated Steel
• Hook Design: Swiveling Snap Hook with Impact Indicator
• Mounting: Integrated Quick-Mount Bracket
• Braking System: Triple-Redundant Braking System
• Brake Monitoring: Built-In Brake Wear Indicator
• Usage Monitoring: Built-In Digital Usage Indicator
• Bearings: Sealed Bearings at All Contact Points
• Power Drive Compatibility: Electric or Pneumatic Drill with Compatible Overload Protection Clutch
• Manual Operation: Removable Crank Handle
• Construction: Durable, Corrosion-Resistant Housing
• Color: Silver and Black
• Installation Type: Portable
• Compatible Systems: Compatible 3M DBI-SALA Tripods and Davit Systems
• Overload Protection Clutch: 3M DBI-SALA 8512936, Sold Separately
• Intended Use: Industrial Confined Space Entry, Worker Retrieval and Rescue

Ideal Industries:

• Construction and Infrastructure
• Oil and Gas
• Mining and Mineral Processing
• Water and Wastewater Treatment
• Utilities and Power Generation
• General Industrial Manufacturing
• Petrochemical and Chemical Processing
• Transportation and Infrastructure Maintenance
• Industrial Maintenance and Repair
• Confined Space Rescue Services
• Energy and Renewable Energy
• Municipal and Public Works
• Steel and Metal Manufacturing
• Marine and Shipyard Operations

Ideal Applications:

• Confined space entry and exit operations
• Vertical worker retrieval from confined spaces
• Emergency rescue and recovery of incapacitated workers
• Industrial manhole entry and retrieval
• Underground utility vault access and rescue
• Sewer and wastewater treatment facility maintenance
• Water tank and storage vessel entry
• Industrial tank and vessel inspection
• Underground chamber and shaft access
• Construction site confined space rescue
• Maintenance and inspection of industrial infrastructure
• Personnel hoisting and controlled retrieval operations
• Integration with compatible tripod and davit rescue systems
• Manual backup retrieval operations during power drive unavailability

The 3M DBI-SALA 8518589 Advanced Digital 200 Series Winch Power Drive is a professional confined space retrieval and rescue solution engineered to support controlled personnel lifting and recovery in demanding industrial environments. Designed for applications where dependable worker retrieval is essential, this advanced mechanical winch combines a 190 ft. (58 m) working-length galvanized steel wire rope with dual-speed operation, providing both a 9:1 power drive and a 4:1 manual crank option. Its power drive configuration allows connection to a compatible electric or pneumatic drill through the appropriate overload protection clutch, helping improve retrieval efficiency and reduce the physical effort required during extended lifting operations. The removable manual crank provides an alternative operating method when the power drive is unavailable. For additional operational confidence, the 8518589 features a triple-redundant braking system, a brake wear indicator, and a built-in digital usage indicator that helps safety personnel monitor equipment usage. Its galvanized 3/16-inch (5 mm) 7x19 aircraft wire rope provides a durable retrieval lifeline, while the swiveling snap hook incorporates an impact indicator to help identify potential equipment impact events. Sealed bearings at contact points, a durable housing, and an integrated quick-mount bracket further support dependable operation and compatibility with appropriate 3M DBI-SALA tripod and davit rescue systems. What is the 3M DBI-SALA 8518589 used for? It is designed primarily for confined space personnel retrieval, controlled lifting, and emergency rescue applications involving workers in locations such as underground utility vaults, manholes, industrial tanks, wastewater treatment facilities, and other restricted-access work areas. Does this winch have a power-assisted retrieval system? Yes. Its 9:1 power drive hub is designed to work with a compatible electric or pneumatic drill, while the 4:1 removable manual crank provides an alternative operating configuration. The required 8512936 overload protection clutch is sold separately and should be included when configuring the drill-powered setup. How long is the retrieval cable? This model provides 190 ft. (58 m) of working lifeline, with an actual cable length of approximately 200 ft. (61 m), making it suitable for deeper vertical access and retrieval requirements when the complete rescue system is properly configured. Can it be mounted to a confined space tripod? Yes. Its integrated mounting bracket is designed for attachment to compatible 3M DBI-SALA tripods and davit systems, but the complete assembly must be checked for equipment compatibility, anchorage requirements, and application-specific limitations before use. Is this winch suitable for lifting workers? The manufacturer lists a maximum working load capacity of 310 lb. (140 kg). It is intended for approved personnel retrieval and rescue applications, not unrestricted material lifting or general-purpose hoisting. Proper equipment selection, trained operators, inspection, and compliance with applicable confined space and fall protection requirements remain essential. For safety professionals sourcing dependable confined space rescue equipment, the 3M DBI-SALA 8518589 combines extended cable reach, mechanical retrieval capability, equipment monitoring features, and a versatile dual-drive configuration in one professional-grade winch. Enviro Safety Products is an experienced and trusted supplier of certified personal protective equipment (PPE) and industrial safety solutions, helping safety managers, contractors, and industrial buyers source dependable equipment for workplace protection, confined space entry, and emergency preparedness. Choose the 3M DBI-SALA Advanced Digital 200 Series Winch 8518589 when your operation requires a purpose-built confined space retrieval system backed by 3M engineering and DBI-SALA fall protection expertise.
