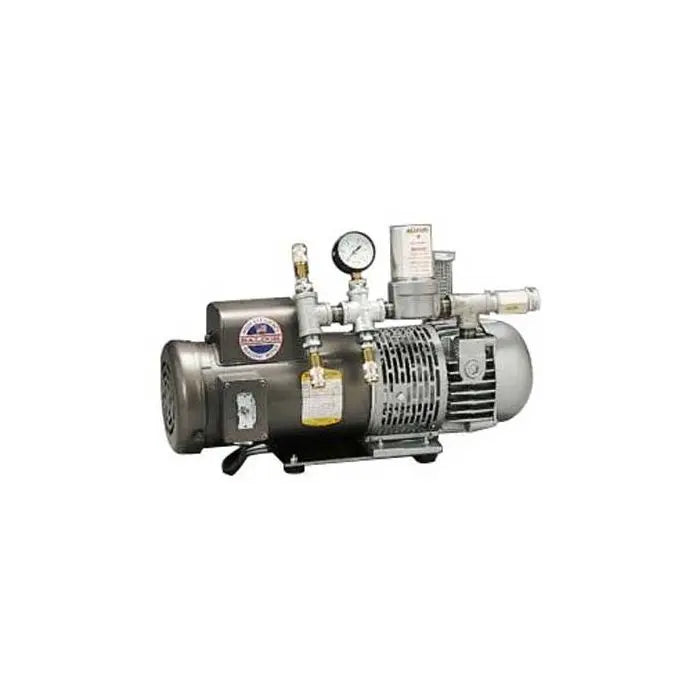

Allegro Industries 9832 A-1500TE Breathing Air Pump, 1 Each

Specifications:

• Product Name: Allegro Industries A-1500TE Breathing Air Pump
• Manufacturer: Allegro Industries
• Part Number: 9832
• Pump Type: Oil-less, direct-drive rotary vane
• Motor Power: 1.5 HP, totally enclosed fan-cooled (TEFC), continuous duty
• Electrical Requirements: 115V/230V AC, single-phase, 60 Hz
• Current Draw: 12.4A at 115V; 6.2A at 230V
• Airflow Capacity: 0–20 CFM (cubic feet per minute)
• Working Pressure: 2–12 PSI; 15 PSI maximum
• Maximum Respirator Capacity: Up to 3 full-face or half-face respirator users
• Maximum Hood Capacity: Up to 2 supplied-air hood users
• Inlet Filter: 50-micron felt filter
• Exhaust Filter: 0.3-micron HEPA filter
• Pressure Gauge: 0–15 PSI
• Pressure Relief Valve: Adjustable brass valve
• Airline Connection: Quick-connect Rectus (OBAC) fittings
• Maximum Airline Length: 100 ft. (30.4 m), from pump to respirator
• Construction: Rigid metal base and housing with four rubber feet
• Plumbing Material: Brass and galvanized steel
• Housing Finish: Gray powder-coated finish
• Motor Speed: 1,725 RPM
• Power Cord: 8 ft. (2.43 m), 14/3 AWG SJTW-A, 300V neoprene medium-duty cord
• Power Switch: External toggle ON/OFF switch
• Noise Level: 95 dB at pump, 85 dB at 6 ft., 78 dB at 10 ft.
• Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
• Dimensions: 27 in. L × 10 in. W × 15 in. H
• Certifications: UL Recognized and CSA Certified
• Color: Gray
• Airline and respirator equipment: Sold separately as required for the intended configuration
• Manufacturer warning: Do not operate breathing air pumps with generators. Position the air inlet where breathable, uncontaminated air can be assured at all times. Allegro Industries +1

Ideal Industries:

• Chemical manufacturing and processing
• Industrial maintenance and repair
• Manufacturing and fabrication
• Surface preparation and finishing
• Construction and renovation
• Industrial cleaning and remediation
• Automotive and equipment maintenance
• Metalworking and finishing
• General industrial operations requiring compatible supplied-air respiratory protection

Ideal Applications:

• Supplied-air respiratory protection for compatible full-face respirators
• Supplied-air respiratory protection for compatible half-face respirators
• Supplied-air hood operations using compatible equipmentv
• Industrial cleaning and surface preparation
• Sanding and dust-generating work
• Chemical handling and cleanup in suitable environments
• Maintenance and repair operations requiring supplied-air respiratory equipment
• Multi-worker respiratory protection setups
• Industrial work requiring a portable ambient-air pump

The Allegro Industries 9832 A-1500TE Breathing Air Pump is a portable ambient-air pump designed to supply breathable air to compatible supplied-air respirator systems in demanding industrial environments. Built for multi-worker respiratory protection, this Allegro A-1500TE air pump supports up to three full-face or half-face respirator users or two compatible supplied-air hood users, making it a practical solution for industrial cleaning, sanding, chemical handling, surface preparation, and maintenance operations. Its 1.5 HP, oil-less rotary vane pump delivers an adjustable airflow capacity of up to 20 CFM, with a working pressure range of 2–12 PSI and a maximum rated pressure of 15 PSI. The direct-drive design, replaceable carbon vanes, 50-micron inlet filter, and 0.3-micron HEPA exhaust filter support dependable operation when the equipment is properly maintained and used according to the manufacturer's instructions. A built-in pressure gauge and adjustable brass pressure relief valve help operators monitor and regulate system pressure, while quick-connect Rectus (OBAC) fittings simplify compatible airline connections. The durable metal housing, powder-coated gray finish, and four rubber feet provide a sturdy foundation for industrial work areas. Measuring 27 × 10 × 15 inches and weighing approximately 122 pounds, the Allegro 9832 is designed for stationary or carefully planned job-site placement rather than frequent manual carrying. It accommodates airline lengths of up to 100 feet between the pump and respirator, subject to the manufacturer's requirements and the connected respiratory equipment's specifications. Buyers should confirm the required electrical supply before ordering, as this model is specified for 115V/230V AC single-phase power at 60 Hz. A common question is whether the A-1500TE can support multiple workers: yes, it is rated for up to three compatible full-face or half-face respirators or two compatible hoods, provided the complete system meets the required airflow and pressure for each user. Another important consideration is whether it can be used in any hazardous environment. The standard A-1500TE should not be confused with Allegro's separate A-1500EX explosion-proof model; verify the pump's suitability for the work area's electrical and atmospheric hazards before use. Because this is an ambient-air pump, its inlet must remain in a location where breathable, uncontaminated air is assured at all times, and the manufacturer warns against operating the pump with generators. It is not a substitute for verifying air quality, selecting compatible NIOSH-approved supplied-air respirators, or following applicable respiratory protection requirements. For facilities sourcing industrial respiratory protection equipment, the Allegro Industries 9832 A-1500TE offers a purpose-built option for compatible multi-user supplied-air applications. Enviro Safety Products is an experienced and trusted supplier of certified personal protective equipment (PPE), helping safety professionals source respiratory protection products for workplace safety programs. Before purchasing, confirm the required number of users, respirator or hood compatibility, airline connections, electrical configuration, and site-specific safety requirements to ensure the breathing air pump is appropriate for your application.
