Description
| Manufacturer | Allegro |
|---|---|
| Brand | Allegro |
| Main Category | Respiratory Protection |
| Packaging | 1EA |
| Weight | 14.0 lb |

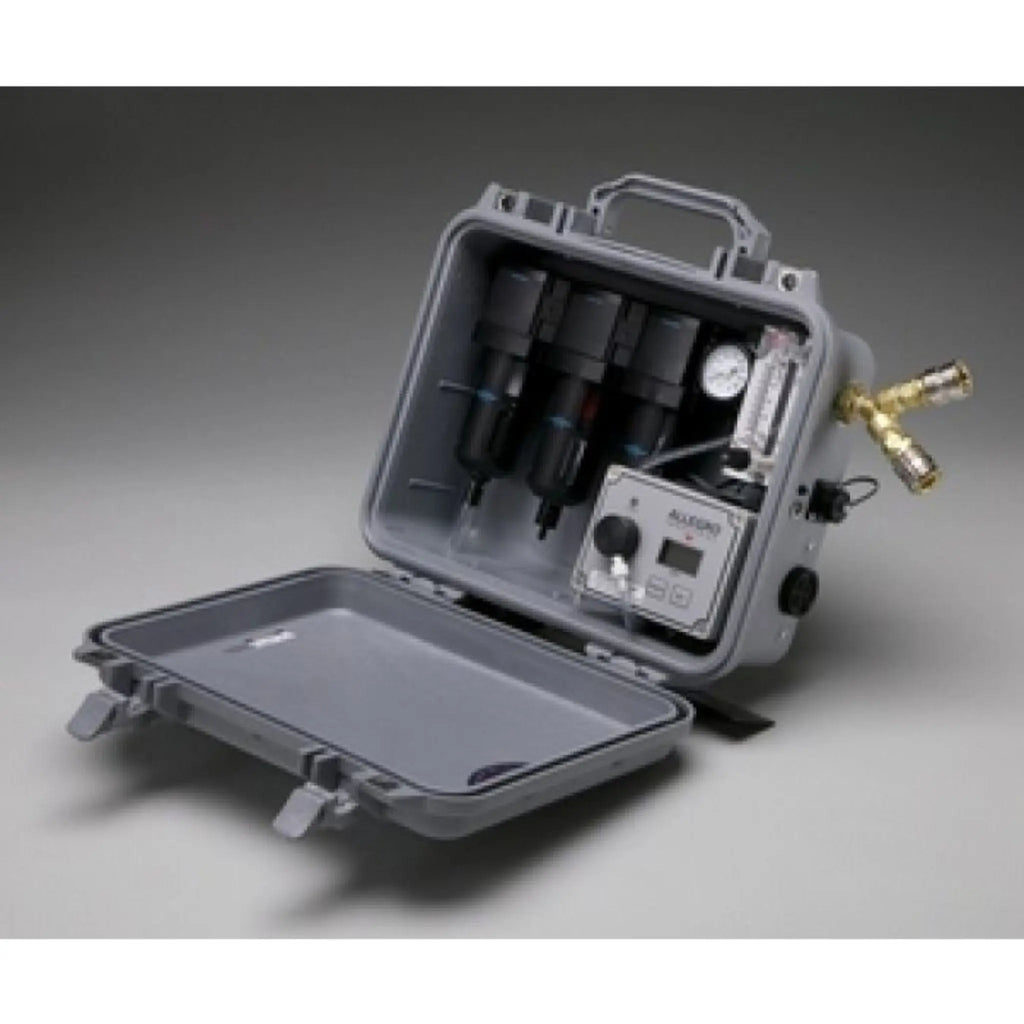

Allegro's Air Filtration Panel convert shop air used for pneumatic tools and equipment to clean breathable air. They provide a portable source of 30 CFMbreathable air from a 5-125 PSI range. The 3-stage filtration system purifies compressed air removing water, oil and particulate contaminants. With a carbon monoxide monitor, this filtration panel can be operated in AC or DC mode to activate an audible alarm when the concentration of CO exceeds 10 ppm (set for 5 ppm in Canada). The pressure regulator includes a pressure gauge and adjustment knob with locking ring. A pressure relief valve protects the CO monitor and respirators in the event of regulator failure. The Carry-Air AC/DC powered unit is housed in a rugged Pelican case for portability and protection. It includes a support stand for stability and up-right operation. NIOSH approved.
Allegro air filtration panels filter impurities and hydro carbons from an air compressor to convert to breathable air. To meet OSHA requirements the CO monitor works for continuous monitoring of carbon monoxide levels.
CONSTRUCTION:
- Housed in a portable, rugged Pelican case with carrying handle, latches for protection and security
- A 16 gauge powder coated steel stand, for support
- All brass plumbing with quick-disconnect Hansen couplers
CO MONITOR:
- Power source: 115V AC to 9V DC power adapter for continuous power supply; 9V DC Alkaline battery (primary or as back-up for AC adapter)
- Alarm Setting: 10 PPM (Canada: 5PPM)
- Ext. Connections: Optional Remote Strobe Alarm
- Audible: 90decibel Piezo Alarm
- Visual: External power LED light signal
- Sensor: Electrochemical, replaceable
- Display: Liquid crystal
- Keys: Mode & Set
- Modes: Normal operation, peak, battery charge and calibration mode
- Calibration: Self adjusting calibration to 20 PPM CO
FILTRATION SYSTEM:
- First Stage: 5 micron particulate filter element and automatic mechanical drain
- Second Stage: 0.010 micron coalescing filter element and manual drain
- Third Stage: 0.003 ppm activated carbon filter element and manual drain
- Regulator: High pressure, adjusting pressure knob, 0-160 (0-11.03 bar) pressure gauge and external relief valve
DIMENSIONS:
- Length In. (cm): 13" (33 cm)
- Width In. (cm): 6" (15.2 cm)
- Height In. (cm): 12" (30.4 cm)
- Weight Lbs. (Kg): 14 Lbs. (6.3 Kg)
AVAILABLE AS A KIT
